Overview
Features and Benefits
- GROUNDBREAKING EFFICIENCY: Powered by MagForce High Efficiency Motor with up to 92% efficiency rating that is 8-12 points (15%) greater than standard induction motor construction. Typical duty rate systems can have a payback of 1 to 2 years.
- SLASH ELECTRICITY CONSUMPTION: Up to 14% energy savings compared to traditional induction motors.
- SIMPLIFIED INVENTORY MANAGEMENT: Available motor options cover a wide range of pump horsepower needs (up to 60 hp) with fewer SKUs to manage.
- SMALLER FOOTPRINT: Lighter and easier to handle than standard induction motors.
- INTUITIVE STARTUP: When optimized and paired with a Franklin Electric variable frequency drive, expect easy startups and reliable protection for any project.
- BUILT TOGETHER TO WORK TOGETHER: Rely on components from a single trusted source for the ultimate in operational compatibility and optimized operation.
- FULLY SUPPORTED: Comes fully supported by the industry’s leading Technical Support professionals and Field Service Engineers.
- Field trial data
Ideal for Long-run Applications
- Groundwater remediation
- Drainage water level control
- Municipal/Utility water supply
- Construction site dewatering
- High volume and industrial livestock operations
- Mine site dewatering and tank level control
- Well supply geothermal HVAC systems
Motor Specifications
- Sand Fighter® models are equipped with Franklin’s robust Sand Fighter sealing system for durability against sand or other abrasives.
- Max 3600 rpm (4-pole, 120 Hz); Nominal 3450 rpm (4 pole, 115 Hz) Maximum temperature winding wire NEMA class 200
- Hermetically sealed windings
- 6” double flange NEMA mounting design
- Field replaceable, factory installed over-molded lead for cable resilience: 13 ft
- Stainless steel shell
- Sand slinger
- Kingsbury-type, water-lubricated, thrust bearing:
- 7.5-30HP – 3,500 lb
- >40HP – 6,000 lb
- Pressure-equalizing diaphragm, spring pre-loaded
- Nominal ambient temperature: 86°F (30°C)
- Cooling flow:
- 7.5-30HP - 0.5 ft/s
- >40HP - 1.6 ft/s
- Max. storage temperature: 5°F to 140°F
- System Supply Voltage: 460 V (120 Hz)
- Voltage Tolerance: ± 10 % UN
- Motor ingress protection IP68 and insulation class F
- NSF/ANSI 61 Certified
- Rotation counterclockwise facing shaft end (rotation reversible)
- Motors installation orientation: Vertical/horizontal (shaft end heightened)
Support Material
Featured Downloads
Brochures
Catalogs
 | Motors & Control Boxes Catalog |
Manuals
Bid Specifications
 | Municipal, Industrial & Irrigation Bid Specification |
Certifications
 | NSF/ANSI 61 Water Quality Approval Document |
Order Information

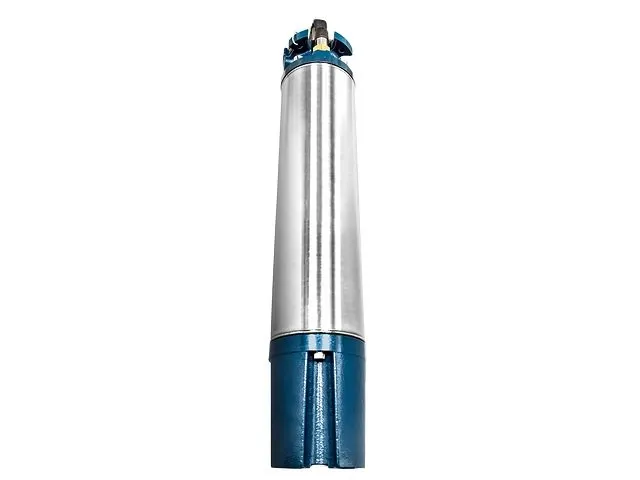

6-Inch MagForce™ Three Phase Permanent Magnet Models
| HP 120Hz | Type | Volts | Hz |
|---|---|---|---|
| 7.5-15 hp | Sand Fighter | 460 VAC | 120 Hz |
| 20-30 hp | Sand Fighter | 460 VAC | 120 Hz |
| 40-60 hp | Sand Fighter | 460 VAC | 120 Hz |
